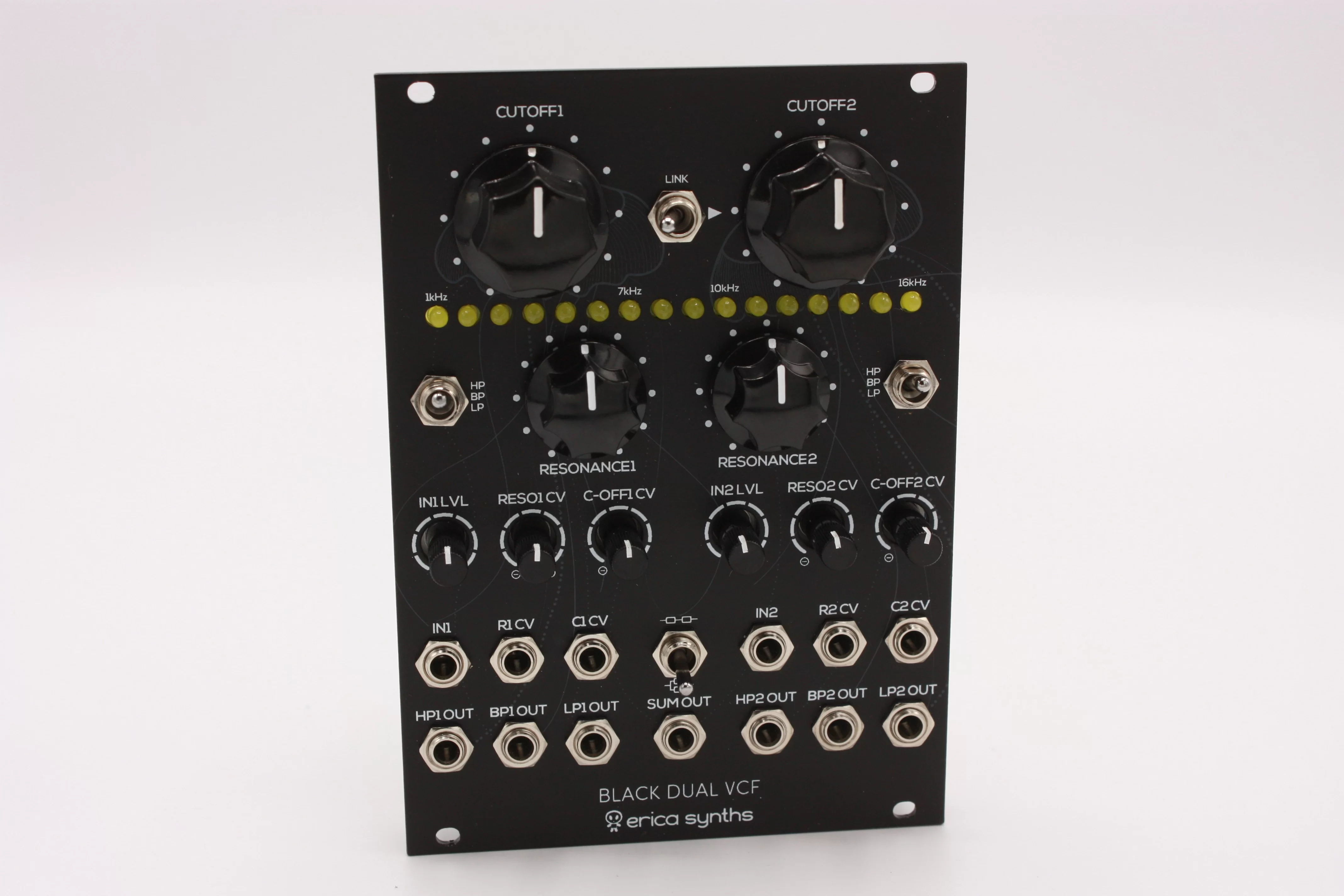

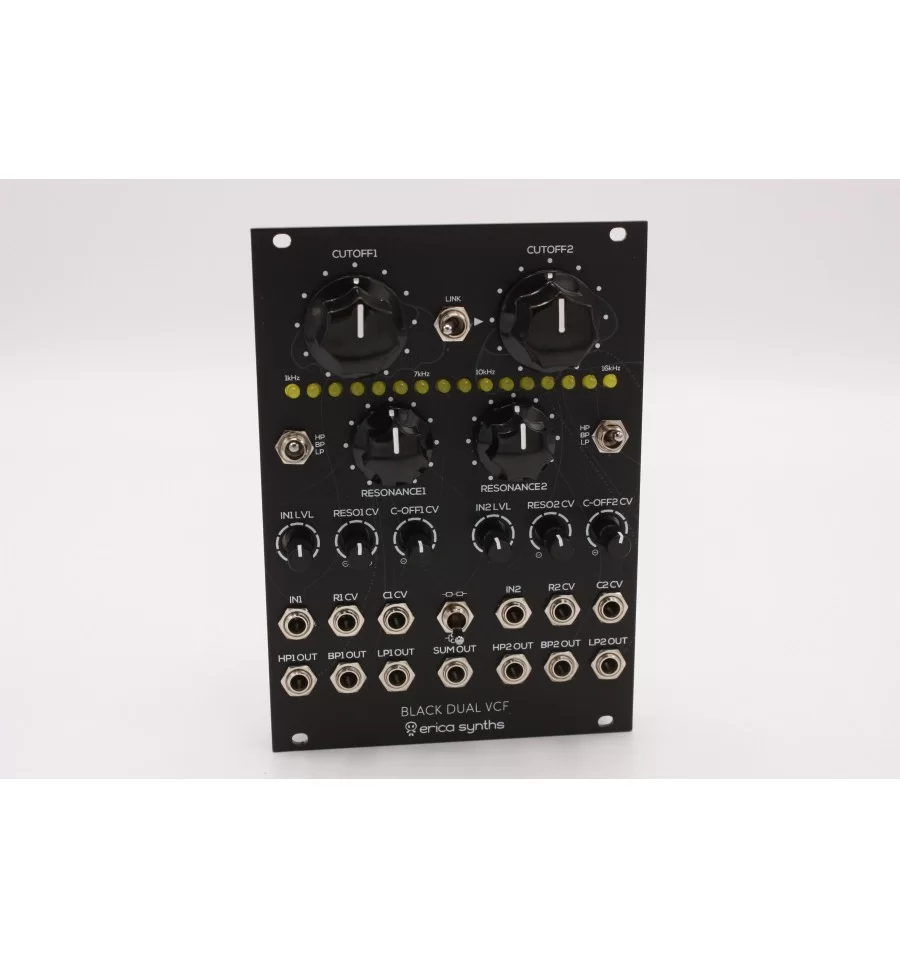

Erica Synths Black Dual VCF

42023

1995 DKK

Erica Synths

This product is not in stock

At the core of this VCF is a highly stable, custom multimode VCF chip AS3320 (produced in Riga, btw). This module can be used as two independent VCFs with simultaneous HP, BP and LP outputs, controls can be linked to stereo application and both VCFs can be chained in series or parallel to the summing output for ultimate modulations.

Bonus feature – the 16 band spectrum analyser gives you visual feedback on what happens on summing output.

Technical specifications:

Audio output amplitude 10 Vptp
CV input (full sweep) 10 Vptp
Panel width 18HP
Module depth 35mm
Power consumption

40mA@+12V,

36mA@-12V

Erica Synths


Erica Synths team of visionaries, engineers and musicians have been working hard to bring you modules and instruments that will set your modular system apart from mass in terms of how it sounds, looks and functions. Check them out and find what you are missing!


Modules


Black Series


Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we put design and usability first. Big knobs are assigned to functions that make difference in sound. The Erica Black series are a range of modules that together make an entire synthesizer.


Fusion Series


Erica Synths Fusion series modules are designed combining  vacuum tubes and semiconductors therefore they bring warm, powerful sound and crazy overdrive possibilities of vacuum tubes into your modular system. Erica Fusion series consist of whole range of modules used in sound generation and shaping circuit – Suboscillator, Mixer, Ringmodulator, VCF, VCA and Analogue Delay/Chorus.


Pico Series


With Pico Series we challenged ourselves – can we make ANY superior functionality synth module 3HP wide and affordable? Yes, we can!


DIY Series


DIY Polivoks-inspired system is skiff friendly and adapted for modular functionality great sounding 84HP two-VCO modular-system with 53 patch points that go well beyond classical monosynths. Key modules are Polivoks-inspired, but this is not just a Polivoks clone. We have introduced numerous innovative solutions in each module to make it more versatile and to expand the functionality of the entire system.


Graphic Series


Erica Synths Graphic series challenges the traditional way how modular synths are operated – using encoders you can literary draw audio waves, advanced envelopes and filter curves on the LCD screen and listen to the result straight away. All settings can be saved in the internal memory and instantly recalled during live performances or next morning after the night, you spent with designing that unique patch. All Graphic Series modules firmware is upgradable via USB cable, and we have designed a web interface to perform upgrades.


Basic Series


These are great, function rich modules to control your modular system, interface it with other musical instruments to release its full potential.


Drum Series


Since Pico Drums is one of bestsellers in Erica Synths range, we decided to inflate it to the Drum System – a set of 15 modules to put together one of the most advanced techno/dnb/industrial music performance system.

No customer reviews for the moment.

Write your review

Write your review

1.995,00 DKK

Erica Synths

This product is not in stock

Erica Synths Black Dual VCF is a dual multimode filter with CV control over cutoff and resonance for serious modular patches

  • Two identical multimode VCFs
  • Simultaneous HP, BP and LP outputs
  • Summing output
  • CV control over Cutoff and Resonance
  • CV level attenuverters
  • Link switch for controlling both VCFs with one cutoff or resonance knob
  • 16 band spectrum analyser
  • Skiff-friendly design
  • 18HP
  • 35mm
  • +12V:40mA - 12V:36mA
