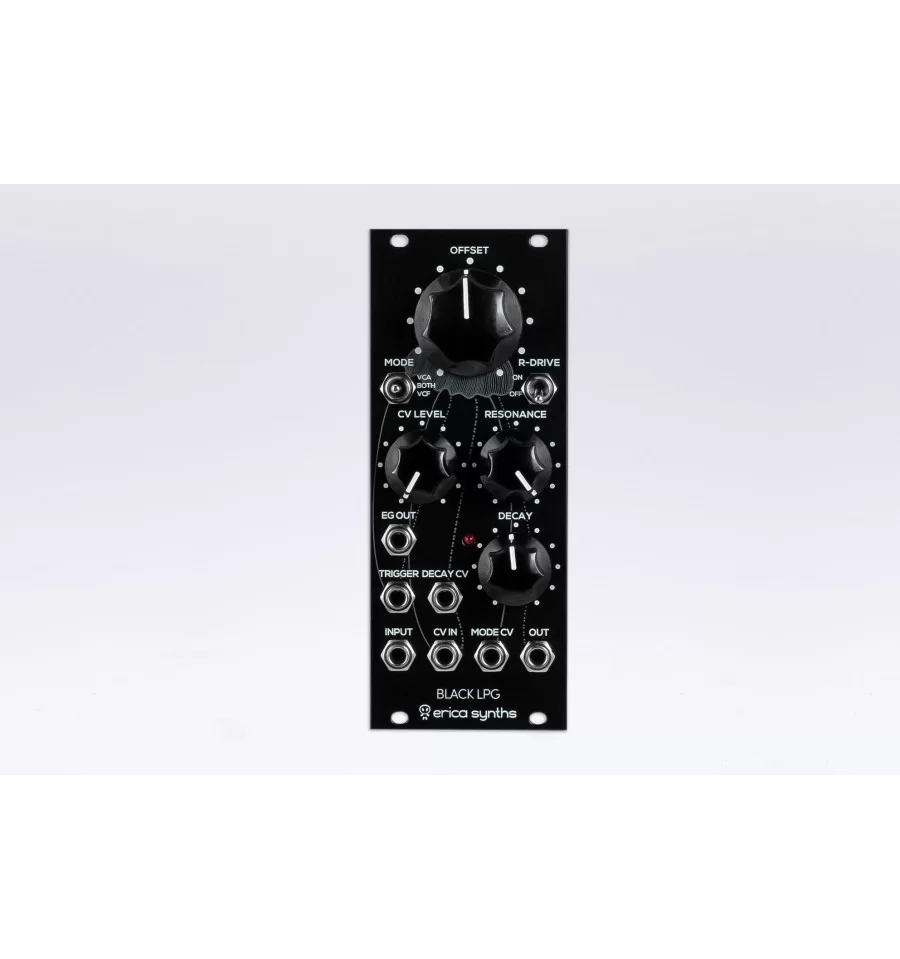

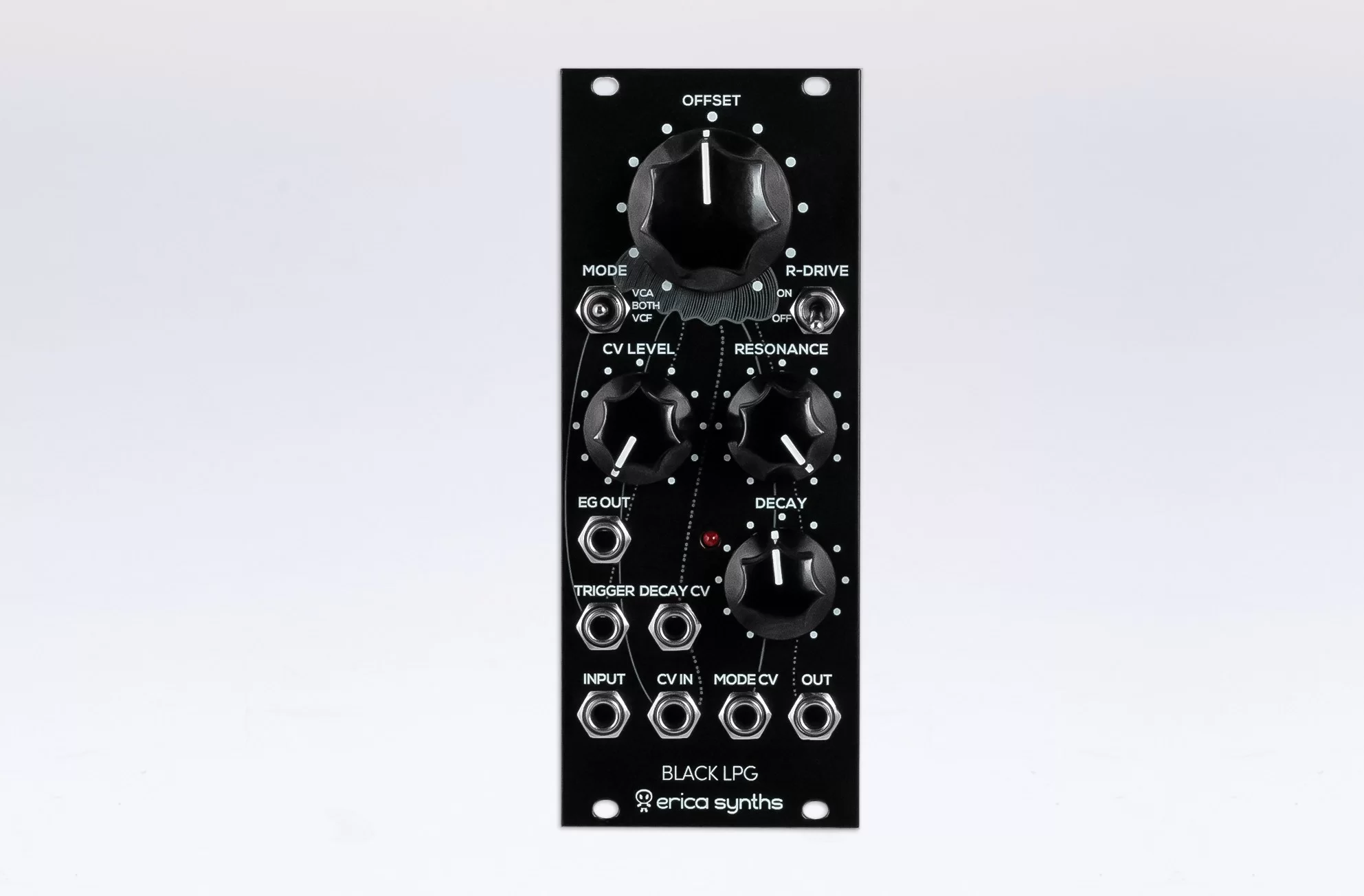

Erica Synths Black LPG

42159

1550 DKK

Erica Synths

1 på lager

Erica Synths Black LPG is our take on Lowpass Gate idea – it’s designed from scratch featuring 2nd order lowpass VCF (the original Buchla lowpass gate was 1st order VCF) and VCA combo with distinct resonance circuit on top. Voltage control over VCF cutoff frequency/VCA offset and mode (VCF/VCF+VCA/VCA), as well as built in decay envelope generator makes it a versatile module for sound shaping in any modular setup.
Audio output amplitude 10Vptp
CV range (full span) -5V - +5V
Max Decay time 4''
Panel width 10HP
Module depth 35mm
Power consumption 44mA@+12V, 45mA@-12V

Erica Synths


Erica Synths team of visionaries, engineers and musicians have been working hard to bring you modules and instruments that will set your modular system apart from mass in terms of how it sounds, looks and functions. Check them out and find what you are missing!


Modules


Black Series


Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we put design and usability first. Big knobs are assigned to functions that make difference in sound. The Erica Black series are a range of modules that together make an entire synthesizer.


Fusion Series


Erica Synths Fusion series modules are designed combining  vacuum tubes and semiconductors therefore they bring warm, powerful sound and crazy overdrive possibilities of vacuum tubes into your modular system. Erica Fusion series consist of whole range of modules used in sound generation and shaping circuit – Suboscillator, Mixer, Ringmodulator, VCF, VCA and Analogue Delay/Chorus.


Pico Series


With Pico Series we challenged ourselves – can we make ANY superior functionality synth module 3HP wide and affordable? Yes, we can!


DIY Series


DIY Polivoks-inspired system is skiff friendly and adapted for modular functionality great sounding 84HP two-VCO modular-system with 53 patch points that go well beyond classical monosynths. Key modules are Polivoks-inspired, but this is not just a Polivoks clone. We have introduced numerous innovative solutions in each module to make it more versatile and to expand the functionality of the entire system.


Graphic Series


Erica Synths Graphic series challenges the traditional way how modular synths are operated – using encoders you can literary draw audio waves, advanced envelopes and filter curves on the LCD screen and listen to the result straight away. All settings can be saved in the internal memory and instantly recalled during live performances or next morning after the night, you spent with designing that unique patch. All Graphic Series modules firmware is upgradable via USB cable, and we have designed a web interface to perform upgrades.


Basic Series


These are great, function rich modules to control your modular system, interface it with other musical instruments to release its full potential.


Drum Series


Since Pico Drums is one of bestsellers in Erica Synths range, we decided to inflate it to the Drum System – a set of 15 modules to put together one of the most advanced techno/dnb/industrial music performance system.

No customer reviews for the moment.

Write your review

Write your review

1.550,00 DKK

Erica Synths

1 på lager

Erica Synths Black LPG is our take on Lowpass Gate idea

  • Three vactors for 2nd order VCF
  • VCF/VCF+VCA/VCA modes
  • Manual and voltage controlled cutoff/offset
  • Manually and voltage controlled mode selection
  • Manually resonance depth control
  • Resonance overdrive switch
  • Built in decay envelope generator
  • Manually and voltage controlled decay time
  • Envelope CV output
  • Skiff-friendly design
  • 10HP
  • 35mm
  • +12V:44mA - 12V:45mA
