It generates sine LFO waves, white noise, S&H CV and some more interesting stuff – random triggers and pulse wave with random duty circle, basically everything you need to bring some uncertainty in your modular setup.
With Pico Series we challenged ourselves – can we make ANY superior functionality synth module 3HP wide and affordable? Yes, we can.
Technical specification:
LFO frequency range |
0,1Hz – 20Hz |
Noise output amplitude |
10Vptp |
LFO and S&H output amplitude |
10Vptp |
Power consumption |
+28mA, -15mA |
Module width |
3HP |
Module depth |
35mm |
Erica Pico RND on Modulargrid
Erica Synths team of visionaries, engineers and musicians have been working hard to bring you modules and instruments that will set your modular system apart from mass in terms of how it sounds, looks and functions. Check them out and find what you are missing!
Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we put design and usability first. Big knobs are assigned to functions that make difference in sound. The Erica Black series are a range of modules that together make an entire synthesizer.
Erica Synths Fusion series modules are designed combining vacuum tubes and semiconductors therefore they bring warm, powerful sound and crazy overdrive possibilities of vacuum tubes into your modular system. Erica Fusion series consist of whole range of modules used in sound generation and shaping circuit – Suboscillator, Mixer, Ringmodulator, VCF, VCA and Analogue Delay/Chorus.
With Pico Series we challenged ourselves – can we make ANY superior functionality synth module 3HP wide and affordable? Yes, we can!
DIY Polivoks-inspired system is skiff friendly and adapted for modular functionality great sounding 84HP two-VCO modular-system with 53 patch points that go well beyond classical monosynths. Key modules are Polivoks-inspired, but this is not just a Polivoks clone. We have introduced numerous innovative solutions in each module to make it more versatile and to expand the functionality of the entire system.
Erica Synths Graphic series challenges the traditional way how modular synths are operated – using encoders you can literary draw audio waves, advanced envelopes and filter curves on the LCD screen and listen to the result straight away. All settings can be saved in the internal memory and instantly recalled during live performances or next morning after the night, you spent with designing that unique patch. All Graphic Series modules firmware is upgradable via USB cable, and we have designed a web interface to perform upgrades.
These are great, function rich modules to control your modular system, interface it with other musical instruments to release its full potential.
Since Pico Drums is one of bestsellers in Erica Synths range, we decided to inflate it to the Drum System – a set of 15 modules to put together one of the most advanced techno/dnb/industrial music performance system.
No customer reviews for the moment.

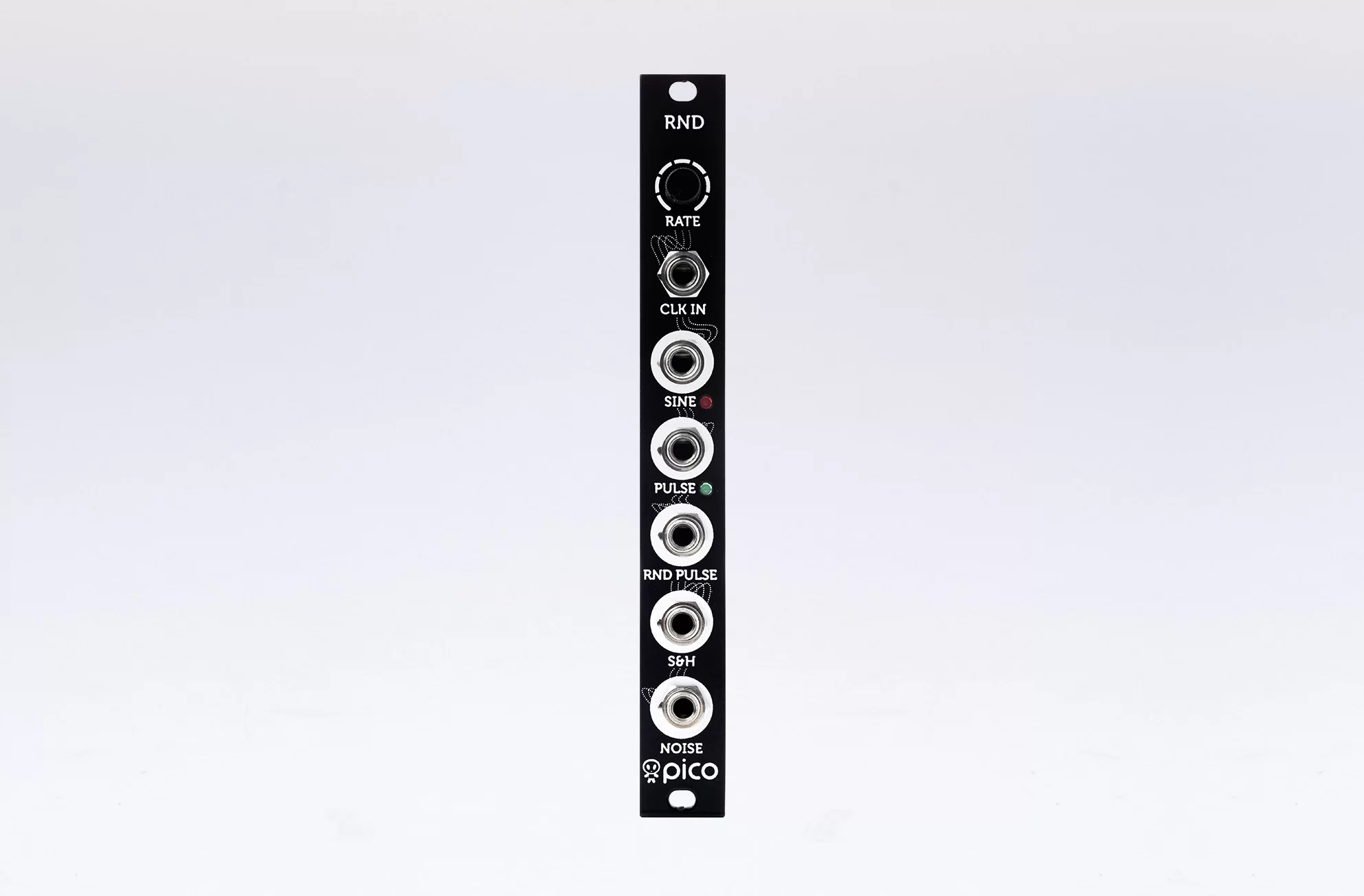

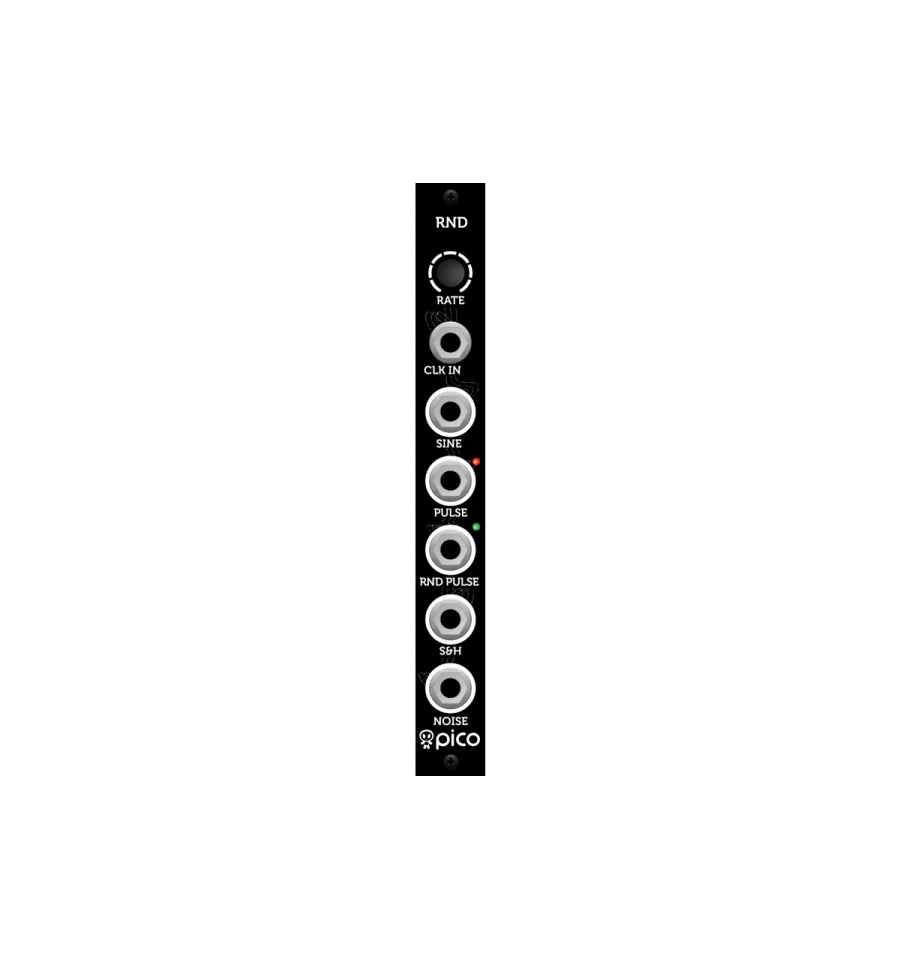

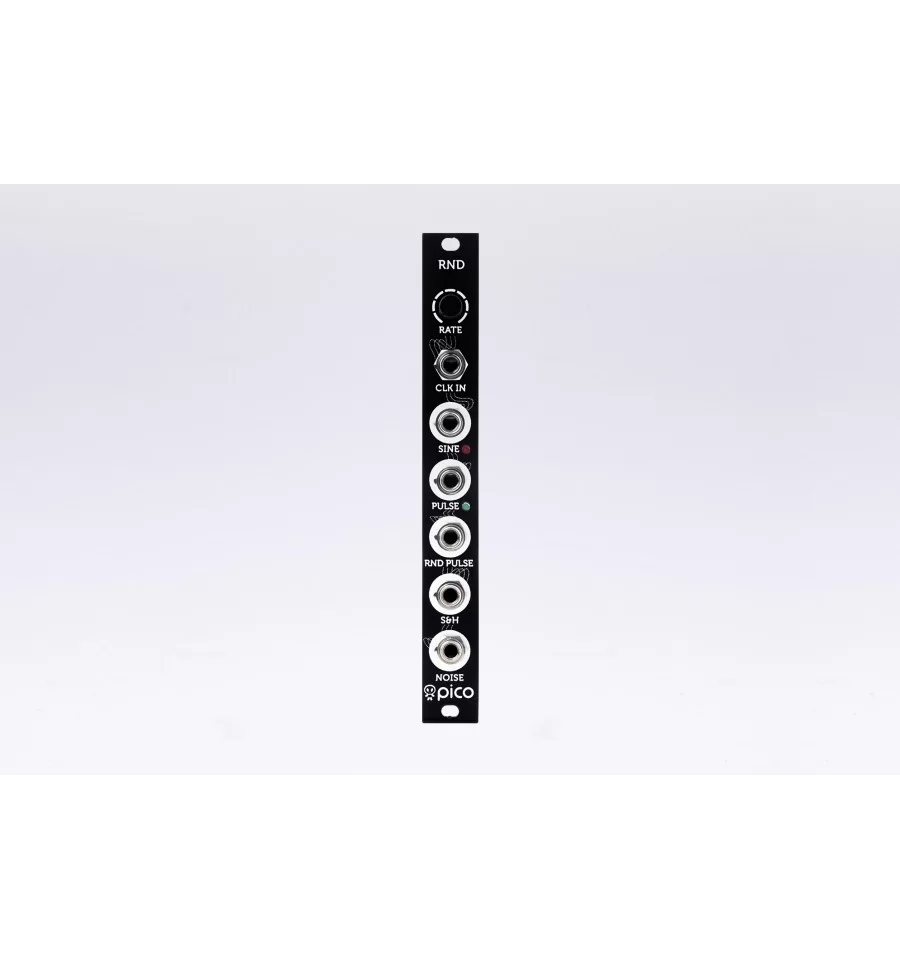

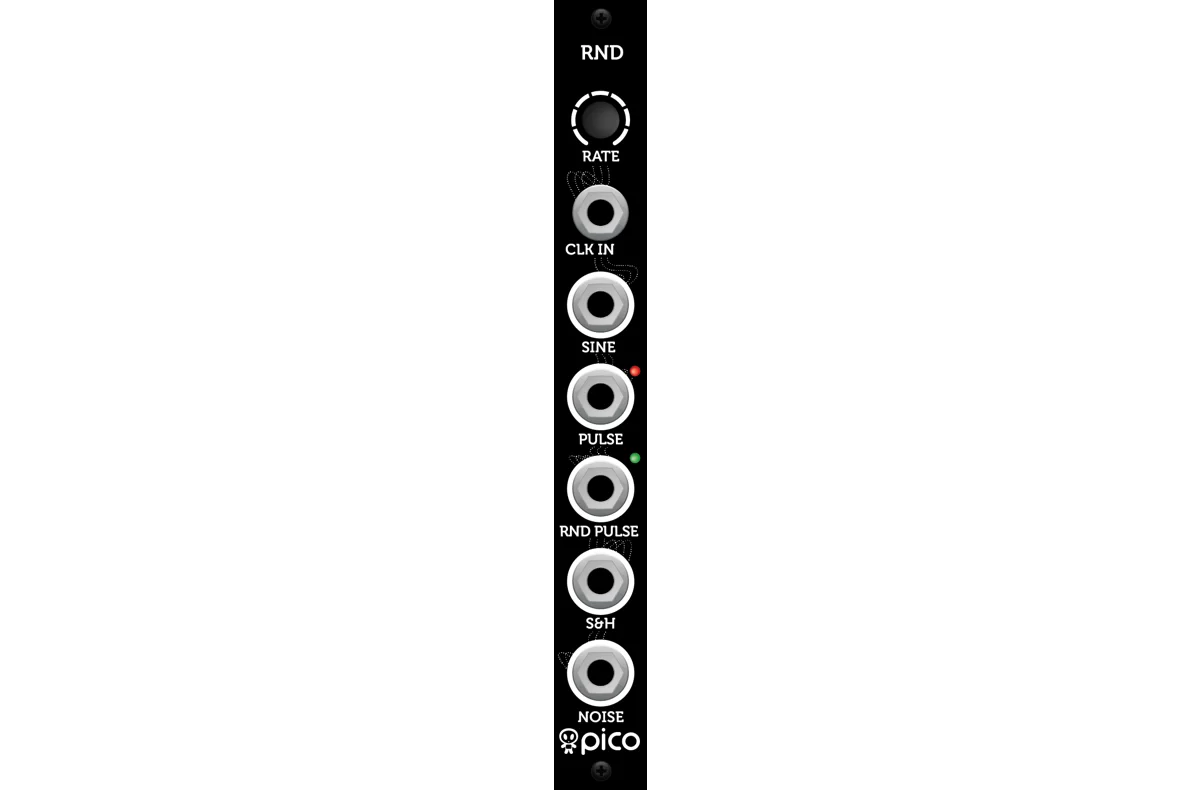

Erica Synths Pico RND is a combined LFO/random source module.
